Linear Guides
Linear Guides: Slider, C-Track, and Roller Configurations, 10 – 800 Lbs. Capacities
There are many instances where non-motorized linear motion / guidance is needed. Often times our linear guides are used as a balancing point for a load which is being driven from the opposite side of a structure or platform. Or, our linear guides can often be found on either side of a screw system or cylinder style actuator. Rolling door, gates, and window applications are also very common with our C-Tracks.
Our Slider, C-Track Roller, and Roller-Slide Guides are highly customizable/configurable and easy to incorporate into single, parallel, square, or multi-axis applications. Our linear guides also offer long service life with minimal noise and maintenance.
Model Overview – Linear Guides
| Model | Guide Type | Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Max Speed |
|---|---|---|---|---|---|
| LGSG40 | Slider (Compact) | 40 / 178 | 40 / 178 | 40 / 178 | 1 m/s |
| LGSG60 | Slider (Compact) | 60 / 267 | 60 / 267 | 60 / 267 | 1 m/s |
| LGSG80 | Slider (Compact) | 80 / 356 | 80 / 356 | 80 / 356 | 1 m/s |
| CGRG10 | C-Track Roller | 10 / 45 | NA | 16 / 35 | 2 m/s |
| CGRG25 | C-Track Roller | 25 / 111 | NA | 20 / 45 | 2 m/s |
| CGRG30 | C-Track Roller | 30 / 133 | NA | 20 / 45 (ea.) | 2 m/s (ea.) |
| CGRG50 | C-Track Roller | 50 / 222 | NA | 40 / 88 | 4 m/s |
| LGRG150 | Roller Slide | 150 / 667 | 450 / 2000 | 875 / 3900 | 8 m/s |
| LGRG250 | Roller Slide | 250 / 1112 | 450 / 2000 | 875 / 3900 | 8 m/s |
| LGRG350 | Roller Slide | 350 / 1555 | 450 / 2000 | 875 / 3900 | 8 m/s |
| LGRG450 | Roller Slide | 450 / 2000 | 450 / 2000 | 875 / 3900 | 8 m/s |
| LGRG650 | Roller Slide | 650 / 2890 | 830 / 3700 | 1775 / 7900 | 8 m/s |
| LGRG800 | Roller Slide | 800 / 3558 | 830 / 7900 | 1775 / 7900 | 8 m/s |
*Slide table to the left to see more data
Linear Guide - Design Options
Slider Guide Design
C-Track-Roller Guide Designs
Roller-Slide Guide Design
Some additional product advantages with Paletti linear guides:
- Single axis through multi-axis configurations
- Single piece carriage and rail construction for all guide types
- AT10 tooth profile belts with easy tensioning and zero backlash
- Carriages and/or slide rails available in special long (20+ feet) lengths
- Carriages and/or slide rails come with 8mm T-Slot mounting functionality
- C-Track-roller guides feature special POM rollers which are internally tensioned
- C-Track-roller guides require no lubrication
- Slider guides feature polymeric shaft bearings through 4 guidance bores
- Slider guides are vertically compact and ideal for restricted spaces
- Slider guides can be mounted and used in any angle
- Roller-slide guides operate on hardened and ground rails
- Roller-slide guides have end of carriage covers with lubrication ports and rail brushes
- Corrosion resistant component options
Please Note – the numbers in the dimensional drawings and specification tables below represent performance parameters for our standardized models. We can always customize a model more specifically to your application. In addition to the information provided here, please also see additional technical information under the Engineering Support tab, or in the online resources at the bottom of this page.
Linear Slider Guides
40 Lbs / 178 N Capacity, Linear Slider Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGSG40 | 40 / 178 | 40 / 178 | 40 / 178 | NA | NA | NA |
| Carriage weight = 0.4 kg |
*Slide table to the left to see more data
60 Lbs / 267 N Capacity, Linear Slider Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGSG60 | 60 / 267 | 60 / 267 | 60 / 267 | NA | NA | NA |
| Carriage weight = 0.6 kg |
*Slide table to the left to see more data
80 Lbs / 356 N Capacity, Linear Slider Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGSG80 | 80 / 356 | 80 / 356 | 80 / 356 | NA | NA | NA |
| Carriage weight = 0.8 kg |
*Slide table to the left to see more data
Linear C-Track Roller-Slide Guides

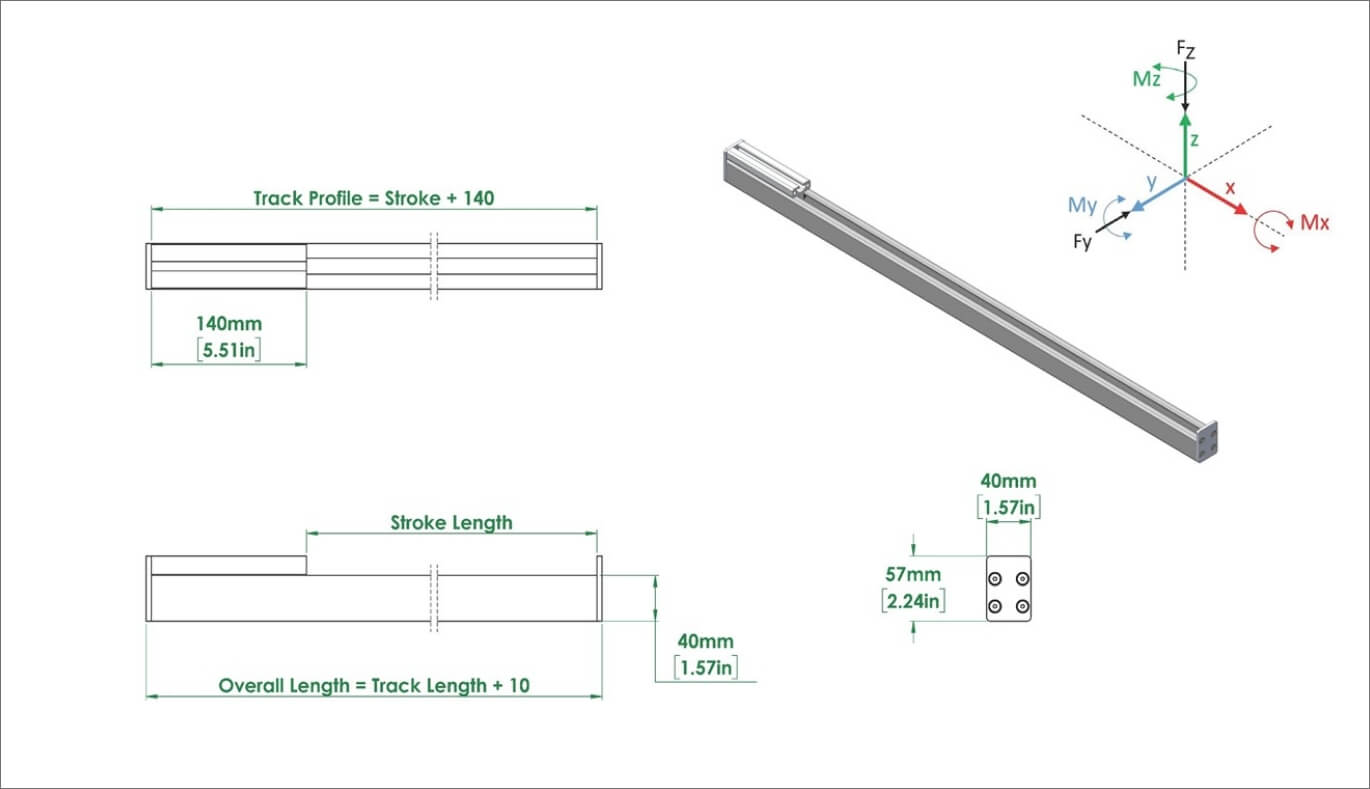

10 Lbs / 45 N Capacity, Linear C-Track-Roller Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| CGRG10 | 10 / 45 | NA | 16 / 35 | 4 / 35.4 | NA | NA |
| Carriage weight = 0.4 kg |
*Slide table to the left to see more data

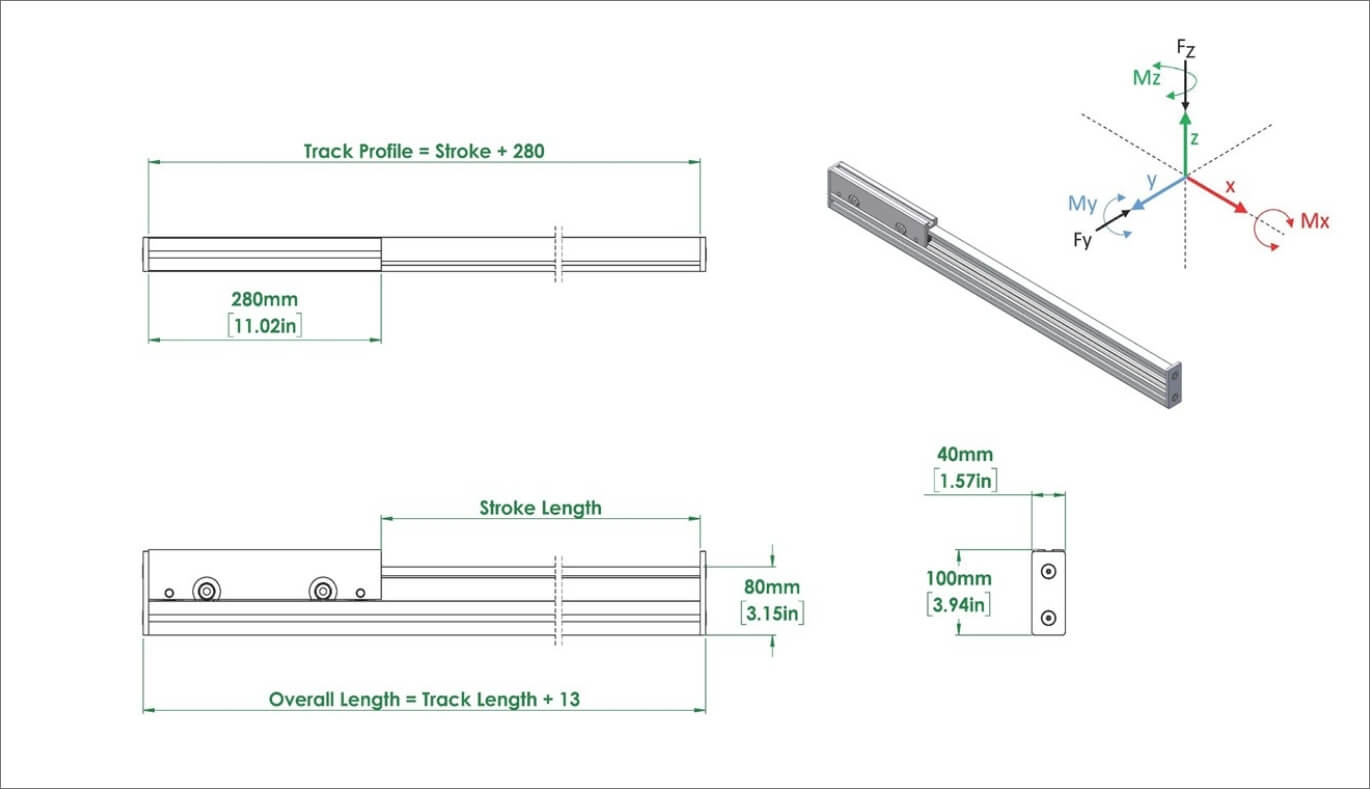

25 Lbs / 111 N Capacity, Linear C-Track-Roller Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| CGRG25 | 25 / 111 | NA | 20 / 45 | 8 / 70.8 | NA | NA |
| Carriage weight = 1.1 kg |
*Slide table to the left to see more data
30 Lbs / 133 N Capacity, Linear C-Track-Roller Guide – Dual Carriage Configuration
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| CGRG30 | 30 / 133 | NA | 20 / 45 (ea.) | 10 / 88.5 | NA | NA |
| Carriage weight = 1.1 kg each |
*Slide table to the left to see more data

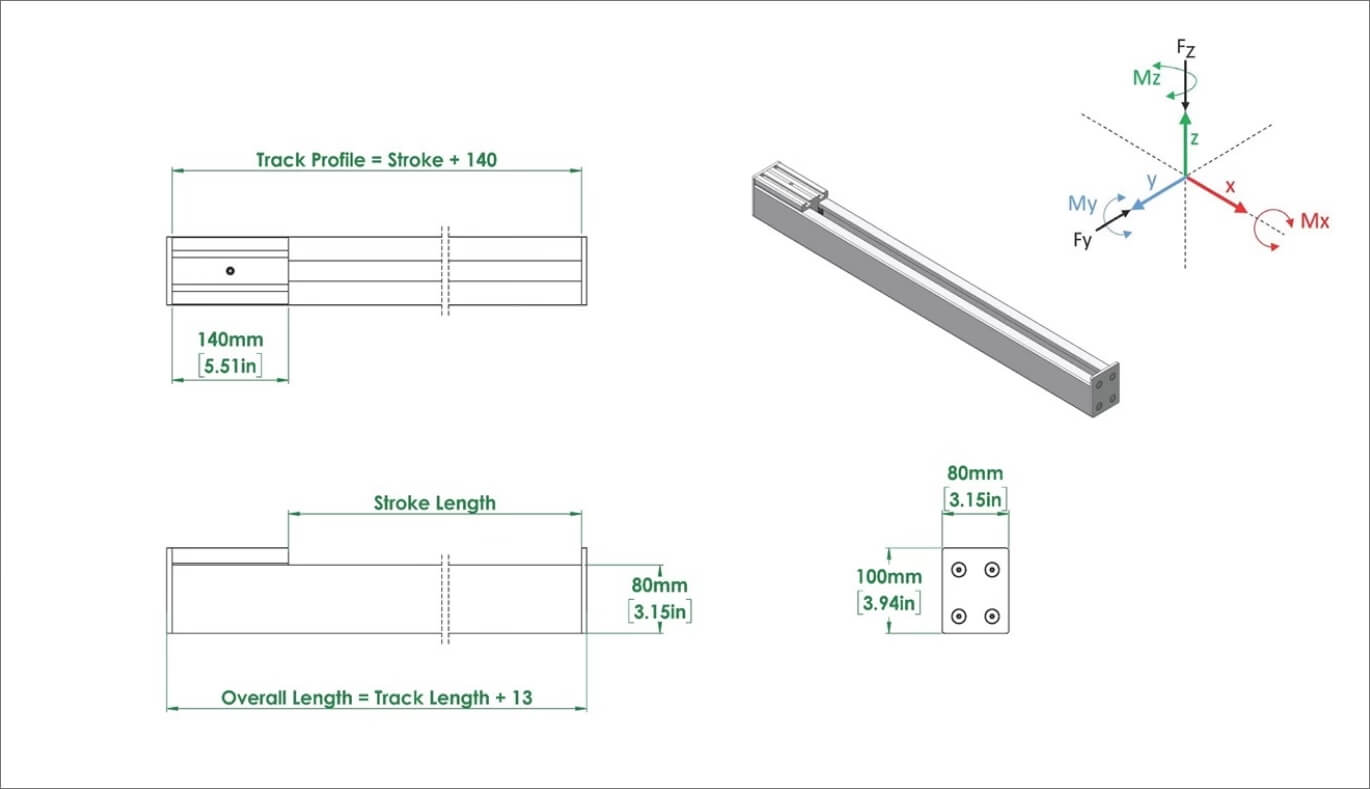

50 Lbs / 222 N Capacity, Linear C-Track-Roller Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| CGRG50 | 50 / 222 | NA | 40 / 88 | 15 / 132.7 | NA | NA |
| Carriage weight = 1.5 kg |
*Slide table to the left to see more data
Linear Roller-Slide Guides
150 Lbs / 667 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG150 | 150 / 667 | 450 / 2000 | 875 / 3900 | 1372 / 155 | 708 / 80 | 531 / 60 |
| Carriage weight = 3.33 kg |
*Slide table to the left to see more data
250 Lbs / 1112 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG250 | 250 / 1112 | 450 / 2000 | 875 / 3900 | 3761 / 425 | 1947 / 220 | 531 / 60 |
| Carriage weight = 6.4 kg |
*Slide table to the left to see more data
350 Lbs / 1555 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG350 | 350 / 1555 | 450 / 2000 | 875 / 3900 | 3761 / 425 | 1947 / 220 | 885 / 100 |
| Carriage weight = 7.1 kg |
*Slide table to the left to see more data
450 Lbs / 2000 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG450 | 450 / 2000 | 450 / 2000 | 875 / 3900 | 3761 / 425 | 1947 / 220 | 885 / 100 |
| Carriage weight = 7.1 kg |
*Slide table to the left to see more data
650 Lbs / 2890 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG650 | 650 / 2890 | 830 / 3700 | 1775 / 7900 | 6284 / 710 | 2920 / 330 | 1814 / 205 |
| Carriage weight = 19.0 kg |
*Slide table to the left to see more data
800 Lbs / 3558 N Capacity, Linear Roller-Slide Guide
| Model | Max Dynamic Load (Lb/N) | Static Axial Load (Fz)(Lb/N) | Static Radial Load (Fy)(Lb/N) | Static Moment Load (Mz)(in-lb/Nm) | Static Moment Load (My)(in-lb/Nm) | Static Moment Load (Mx)(in-lb/Nm) |
|---|---|---|---|---|---|---|
| LGRG800 | 800 / 3558 | 830 / 7900 | 1775 / 7900 | 7700 / 870 | 3584 / 405 | 2478 / 280 |
| Carriage weight = 21.0 kg |
*Slide table to the left to see more data
Since our linear guides, actuators, aluminum framing, and conveyors all use the same 8mm T-Slot, it was very easy for us to complete the rest of the system structure, add the conveyor for the initial transport, and then add perimeter frame guarding around the entire system.
We invite you to review the attached pdf’s and online resource links below; the framing profile links contain tabs for our online 3D modeling and stress calculation tools, or please contact us for help anytime.
